Novo Precision offers wire cutting and wire straightening. We straighten and cut wire in a wide variety of sizes, lengths and material and our cut pieces of wire will meet your length and straightness tolerances. We can cut wire with diameters as low as 0.004" up to 0.375" made from aluminum, stainless steel, steel, precious metals and most linear material. We also cut precious metals to include cutting gold, silver, and platinum from either spool or rod. Novo doesn't hold any minimum quantities and our wire straightening and wire cutting service can be customized to help fulfill your needs. In addition to wire we also cut tubing and cut strips as well as straighten those materials. All of our wire cutting leaves ends with minimal to no burr and the wire straightened to customer tolerance levels. Novo also offers secondary operations which include wire forming, bending, stamping and many other applications. We also offer batching and packaging options to create a one stop shop for your production needs. We can work with our customers through one time orders, blanket orders or setup a pull system using kanban to optimize flexibility and minimize your lead-times. At Novo we have been cutting wire for over 30 years and strive to be your partner in your wire supply needs. For more information feel free to contact us or request a quote and one of our experienced sales associates will answer your specific questions.
We started working with Bill Hazard and the team at Novo 2 years ago and I can honestly say that they have been the most quality and customer service driven company we have worked with in the 39 years I've been in the Component Manufacturing business. They were able to redesign and help our customer bring to market a new and improved product in a very short demanding time frame. Bill is always looking for ways to reinvest and grow his company as well as his customers companies. The Novo team has been a pleasure to work with and we are looking forward to our next project. -Tim Crowley

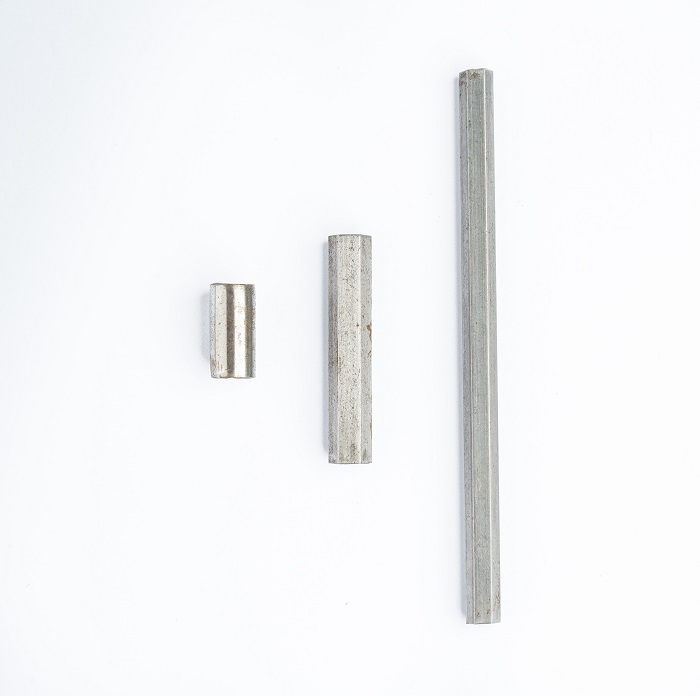

Cut Wire
Novo Precision offers cut to length services for wire diameters ranging from .003" to. 350", strip widths up to .375", and thicknesses down to .004". The material type and thickness to width ratio will determine if the specific application is suited to our processing capabilities to straighten and cut wire. Click here to see our machines running production.
Novo Precision specializes in applications where the cut pieces need to be straight, the cut length tolerance is +/- .002” or greater, and a square, burr free cut is necessary. The quill-on-quill shearing concept employed results in cuts with minimal distortion that can sometimes eliminate the need for chamfering ends for leads in automated assembly operations.
The tube shearing process incorporates arbors to support the ID and OD of the tubing on both ends, which results in minimal distortion and burr free sheared ends. This can be particularly beneficial when cutting precious metal tubing since there is no waste resulting from the kerf of an abrasive wheel process. Tubing diameters to .250" and cut lengths to .375" can be processed.
Tantalum Markers
Cut Wire and Medical Markers
Tantalum markers for use in medical applications are produced in a wide range of diameters and lengths. Novo Precision manufactures tantalum markers from ASTM F560 in the full hard condition, and can provide a Material Certification and Certificate of Compliance for each product shipment. Passivation to specifications A967 (citric acid) and F86 (nitric acid) can also be included. Other medical markers include radiographic markers, implant markers, bone markers and radiopaque markers.
We can quote and supply solid cylindrical medical marker pins made from round or shaped solid material processed from coil or rod. If you have any requirements for solid markers, please provide me with the diameter and length along with the quantity you need to order, and I will quote accordingly. Note that the length of the marker needs to be approximately 1.5 times the diameter of the wire in order to shear cut and maintain a good cut quality with minimal deformation.
Wire straightening is the process of removing curvature and coil memory from wire to produce straight, precision-cut pieces that meet exact tolerance requirements. Novo Precision provides custom wire straightening and wire straightening services for a wide range of materials, diameters, and cut lengths.
What wire materials can Novo Precision cut and straighten?
Novo Precision offers wire cutting services as well as wire straightening and cutting for aluminum wire, stainless steel wire, steel wire, gold wire, silver wire, platinum wire, and many other linear materials. Services are available for both spool-fed and rod-fed materials.
What wire diameters can Novo Precision process?
Novo Precision can process wire diameters ranging from 0.004 inches up to 0.375 inches. These precision wire cutting capabilities support industries that require tight tolerances and consistent wire lengths.
Does Novo Precision offer custom cut-to-length wire services?
Yes. Novo Precision specializes in precision wire cutting and custom cut-to-length wire services based on customer specifications for length, straightness, material type, and tolerance requirements. No minimum order quantities are required.
What industries use wire cutting and wire straightening services?
Wire cutting services and wire straightening services are commonly used in medical manufacturing, aerospace, electronics, automotive, industrial manufacturing, and precision component applications where tight tolerances and consistent wire lengths are critical.
What industries use wire cutting and wire straightening services?
Wire cutting services and wire straightening services are commonly used in medical manufacturing, aerospace, electronics, automotive, industrial manufacturing, and precision component applications where tight tolerances and consistent wire lengths are critical.
Can Novo Precision cut precious metal wire?
Yes. Novo Precision offers precision wire cutting services for precious metals including gold, silver, and platinum wire. Precious metal wire can be processed from either spool or rod depending on customer requirements.
Does wire cutting leave burrs on the wire ends?
Novo Precision’s precision wire cutting process is designed to produce minimal to no burrs on wire ends. This helps improve part quality, consistency, and downstream manufacturing performance for precision applications.
Does Novo Precision offer secondary operations after wire cutting?
In addition to wire straightening and cutting, Novo Precision offers secondary operations including wire forming, wire bending, stamping, batching, and custom packaging solutions to support complete production requirements.
Can Novo Precision process tubing and strip materials?
Yes. Novo Precision provides industrial wire cutting services for tubing, strip materials, and other linear materials in addition to wire. These capabilities help customers consolidate multiple precision manufacturing operations with a single supplier.
Does Novo Precision support blanket orders or kanban inventory systems?
Yes. Novo Precision supports one-time orders, blanket orders, and kanban pull systems to help customers improve supply chain flexibility, reduce lead times, and streamline inventory management for wire cutting services and recurring production needs.
What types of linear materials can Novo Precision process?
Novo Precision processes a wide range of linear materials including wire, tubing, narrow strip, cable, rods, and shaped materials. They work with stainless steel, aluminum, copper, brass, titanium, precious metals, and specialty alloys such as Nitinol and tungsten for precision manufacturing applications.
What are the benefits of Novo Precision’s tube cutting and secondary operations capabilities?
Novo Precision’s shear cut tube processing eliminates the need to cut process scrap and avoids kerf loss, helping improve material efficiency and reduce waste. We also engineer custom modules for secondary operations such as forming, bending, stamping, and other value-added manufacturing services. Custom cutting quills can also be designed for shaped materials to achieve burr-free cuts.
What cut-to-length wire applications does Novo Precision support?
With the ability to process wires from 0.004" - 0.375", strip widths up to .375", and material thicknesses down to .004", our common applications include medical pins, cut wire components, gold wire cutting, silver wire cutting, platinum wire cutting, steel wire cutting, micro tubes, miniature tubes, solder preforms, brush wire manufacturing, tie wire manufacturing, music wire cutting, monofilament cutting for lighting, and many other custom cut-to-length wire applications.
Value Analysis/ Value Engineering Using Novo Cut to Length
Cut Pieces of Wire
Novo Precision is dedicated to becoming a true partner with each one of our Cut to Length customers. Please click here to
see how through the use of cutting edge technologies we are able to save time and cut costs compared to traditional methods. That savings we are able to pass on to our customers all while delivering the highest quality product. Let Novo Precision fulfill your Cutting and Straightening needs.

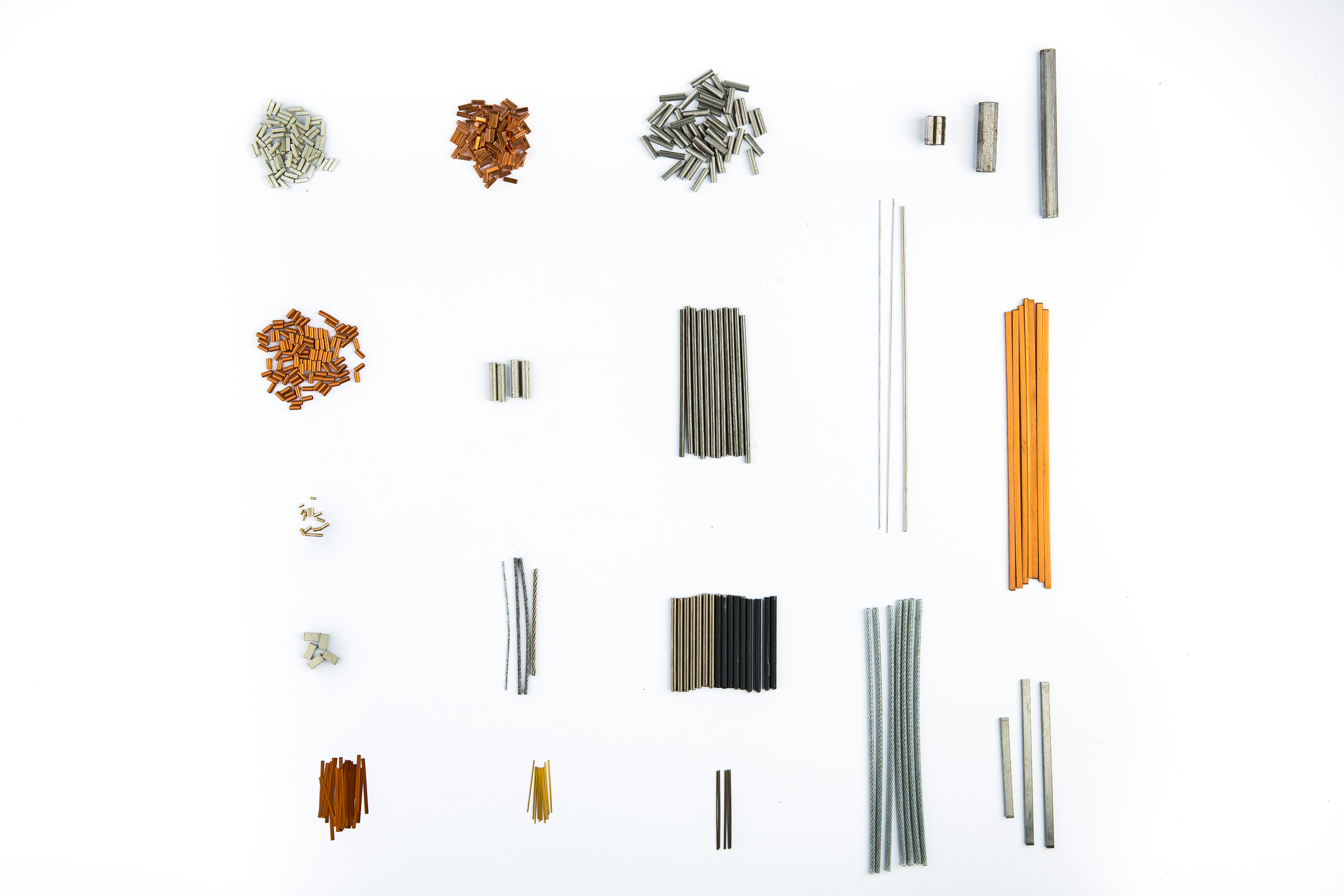

Straighten and Cut WireWire Cutting Service-Samples
