Rotary Wire Straighteners & Rotary Tube Straighteners

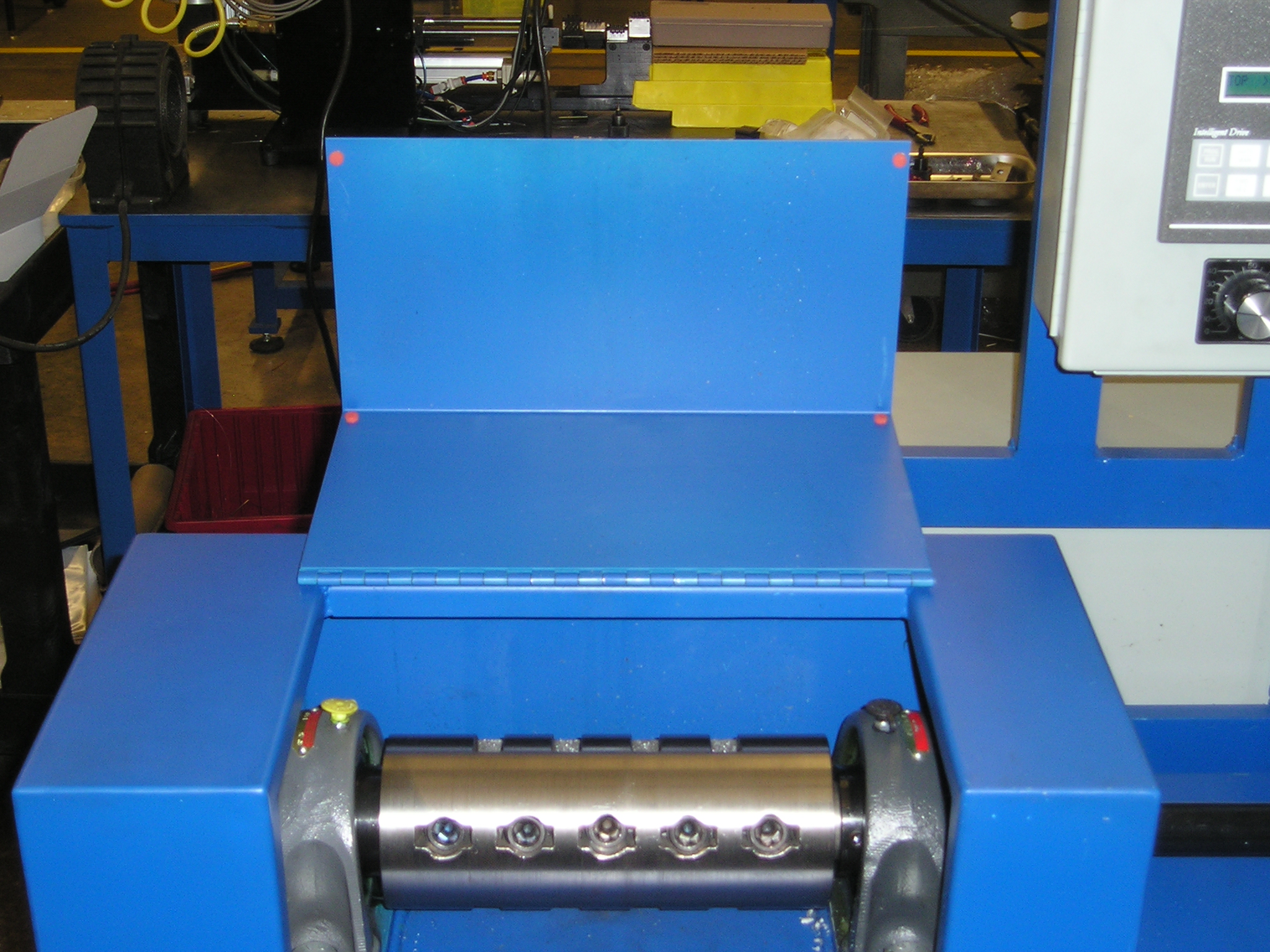

Rotary Wire Straighteners

• Optimal straightness of wire or tube
• Straightness tolerances hold over long lengths
• Easy integration into Novo Feed and Cut unit for Turnkey System
• Variable feeding speed to obtain optimum production
• Much higher length consistency over traditional process

Differences from Roll Straightening

Rotary straightening differs from roll straightening in that it flexes the material back and forth using a rotating bending axis rather than a fixed line of rolls. How many bending cycles the material undergoes depends on both the line speed and how fast the spinner rotates. The tooling involved typically includes straightening blocks, cheeks, or rolls.

This method is most commonly applied to rods and bars, where the material's tendency to spring back—from bending as well as torsional stress introduced during cutting—needs to be corrected. A common misconception is that using two counter-rotating spinners cancels out the torsional stresses the process introduces; in practice, it doesn't fully resolve them.

Because rotary straightening is a more aggressive forming process—one that can mark the material's surface and, in some cases, meaningfully alter its mechanical properties—many manufacturers now favor roll-type straighteners as a gentler alternative.

FAQs

• What is a rotary wire straightener used for?

  A rotary wire straightener is used to achieve optimal straightness in wire or tube, especially in applications where straightness tolerances need to hold over long lengths.

• How does rotary straightening actually work?

  Rotary straightening flexes the material through alternating bends using a rotating bending axis, rather than passing it through a fixed line of rolls. The number of bending cycles depends on both the material's feed speed and the spinner's rotation speed. Common tooling includes straightening blocks, cheeks, or rolls.

• What wire and tube diameters can Novo Precision's rotary straighteners handle?

  Novo Precision's rotary straighteners handle diameters ranging from .015" up to .250".

• What's the difference between a single arbor and double arbor rotary straightener?

  Novo Precision offers both single and double arbor configurations, giving customers flexibility depending on their straightening requirements.

• How is rotary straightening different from roll straightening?

  Roll straightening passes material through a fixed series of rolls, while rotary straightening subjects the material to alternating bends via a rotating axis. Rotary straightening is more commonly used for rods and bars that need to release spring-back from bending and torsional stress introduced during cutting.

• Does using two counter-rotating spinners eliminate torsional stress?

  Not fully. It's a common assumption that two counter-rotating straightening spinners cancel out the torsional stresses introduced by the process, but in practice they don't fully neutralize them.

• Is rotary straightening more aggressive than roll straightening?

  Yes. Because it forms the material more aggressively, rotary straightening can affect surface finish and, in some cases, material properties more than roll straightening does. Many manufacturers choose roll-type straighteners specifically for gentler handling — Novo Precision offers both, so the right choice depends on the application.

• Can a rotary straightener be integrated into a larger production system?

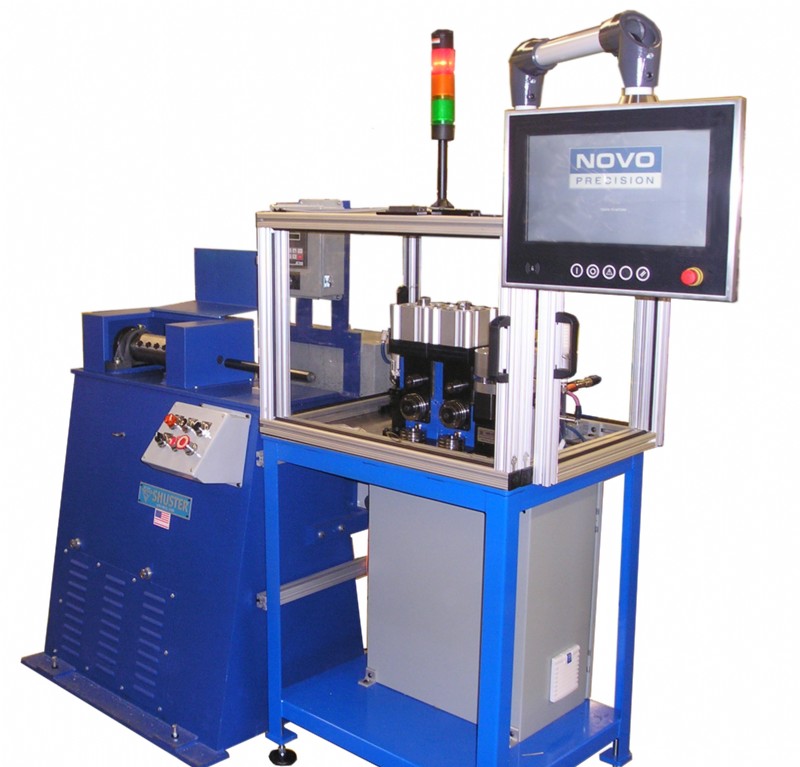

  Yes. Rotary wire straighteners integrate easily into a Novo Feed and Cut unit as part of a full Turnkey System.

• Does feeding speed affect production output?

  Yes. The machines offer variable feeding speed, allowing customers to adjust for optimum production rates based on their application.

• How long has Novo Precision been manufacturing wire and tube straighteners?

  Novo Precision has been making wire and tube straighteners since 1981.
