Novo Precision

Feed & Cut to Length System with Rotary Straightener

Overview

New to our line of Turnkey Systems is our Feed and Cut to Length System with a Rotary Straightener integrated. These machines are ideal for production that requires optimal straightness of material. Wire, tube, strip or most linear materials can be run through the Rotary Straightener and cut off in the attached feed and cut system. Unlike most standard roll straighteners the rotary can hold strict straightness tolerances over long lengths. The rotary straightener can come in a variety of models that handle material diameters of as low as .015" all the way up to .250". Models are available with both a single and dual arbor system depending on production needs.


Feed and Cut System

Novo offers a complete line of servo designed wire, strip and tube processing and fabrication machines that are custom designed to perform many applications including cutting, stamping, swaging, chamferring and others.  These wire cutting systems are designed to be tremendously accurate with a repeatable cut and feed rates in excess of 48 inches.  These machines are perfect for your production needs.

Servo Feed and Cut System
Servo Feed and Cut System
  • Can handle wire diameters from .007" - over .250"
  • Tightest length tolerances in the industry
  • Unmatched cut quality
  • Linear materials include wire, tube, strip and many others
  • Servo or Pneumatic options based on production needs
  • Quill on Quill cutting method leaves burr free cut
  • Tight length tolerances as low as +/- .002"
  • Many options including wire payoff, safety/sound enclosures, one touch controls
  • shut off sensors for safe production



Rotary Straighteners

Material can be fed off a spool directly into our line of custom rotary straighteners.  Depending on the size of the wire in production we can offer you a solution to match.  When straightness is of upmost importance a Rotary straightener is your answer.  Able to hold tight tolerances over long lengths of material is why companies choose the rotary over the standard roll straightener.  Features include:

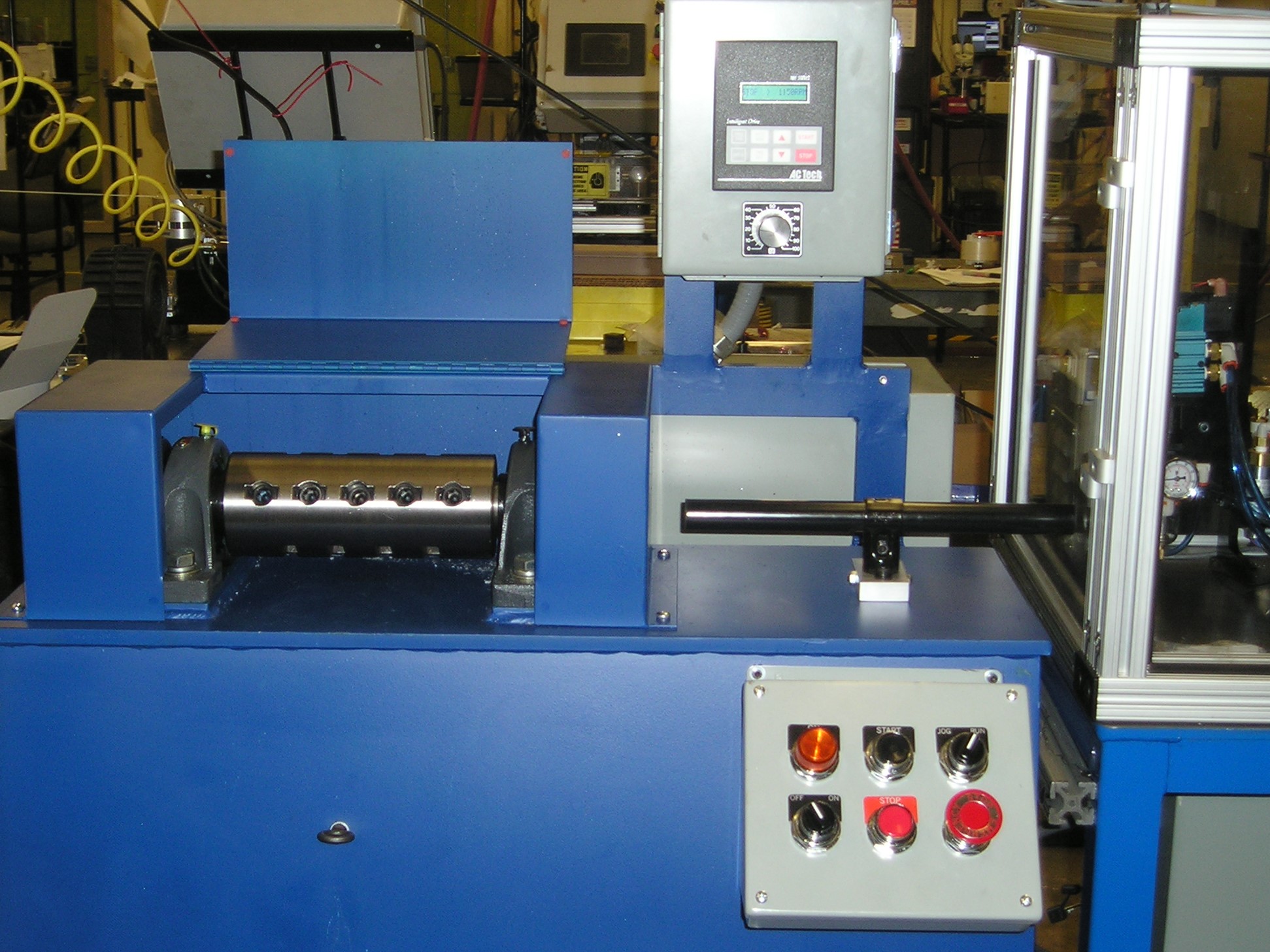

Rotary tube straightener

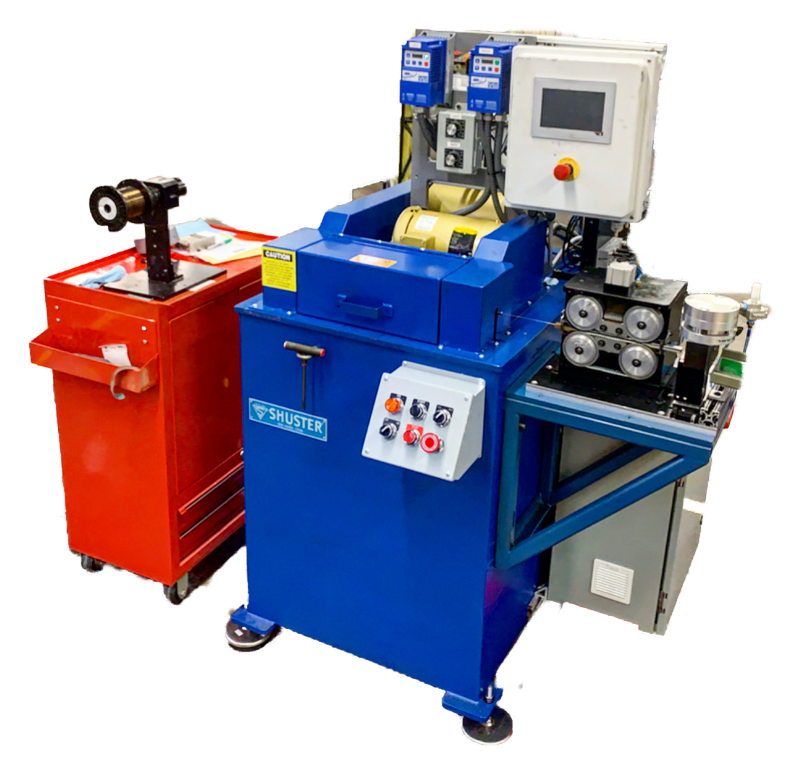

Rotary tube or wire straightener
  • Handles wire diameters from .015"-.250"
  • Single or double arbor configurations give many options
  • Holds straightness in even the softest wire over many feet
  • easily adjustable arbor speed and material flow
  • integrates into Feed and Cut system
